Do not forget to set your working directory in the right place Menu : Session/Set Working Directory/Choose directory And indicate Git/2024_MODE_OCR
The dataset (available following this link https://zenodo.org/records/8251495 ) used for this work contains nest records from different studies conducted in North America and more specifically in Wisconsin and Illinois. It was conducted in 13 different counties : Dane, Grant, Green, Iowa, Lafayette, Monroe, Rock, Lee, Ogle, Will, Grundy, Carroll, and Jo Daviess counties. The dataset contains the records of 3257 nests and for each of them different observations.
These observations are the following:
All theses observations are presented in a table with the following collums :
Import dataset
Charge the packages Download the spDataLarge package, unavailable on CRAN
if (!require(spDataLarge)) {
stop("The package 'spDataLarge' must be installed from the following depot : https://nowosad.github.io/drat/ \n
Use the following command in order to install : \n
install.packages('spDataLarge', repos = 'https://nowosad.github.io/drat/', type = 'source')")
}Loading required package: spDataLargeThe rest of the packages
You can visualize the first rows of the dataset by running the following cell :
# View the firsts lines of the dataset
head(data) Nest_ID State County Habitat Species Year Nest_Fate Initiation_Date
1 745JAAP Illinois Will Pasture Bobolink 1995 0 58
2 748JAAP Illinois Will Pasture Bobolink 1995 0 52
3 753JAAP Illinois Will Pasture Bobolink 1995 1 51
4 754JAAP Illinois Will Pasture Bobolink 1995 0 60
5 755JAAP Illinois Will Pasture Bobolink 1995 0 53
6 758JAAP Illinois Will Pasture Bobolink 1995 0 65
Number_Fledged Nest_End_Date
1 0 78
2 0 74
3 6 75
4 0 75
5 0 69
6 0 78In order to picture the data in a more visual way, we will represent our dataset on a map. The first step in our map creation is the separation of the dataset by the counties.
data_list_county <- split(data, data$County)
data_will <- data_list_county[["Will"]]
data_jo_daviess <- data_list_county[["Jo_Daviess"]]
data_lafayette <- data_list_county[["Lafayette"]]
data_iowa <- data_list_county[["Iowa"]]
data_dane <- data_list_county[["Dane"]]
data_green <- data_list_county[["Green"]]
data_grant <- data_list_county[["Grant"]]
data_grundy <- data_list_county[["Grundy"]]
data_lee_ogle <- data_list_county[["Lee/Ogle"]]
data_lee <- data_list_county[["Lee"]]
data_rock <- data_list_county[["Rock"]]
data_monroe <- data_list_county[["Monroe"]]
data_carroll <- data_list_county[["Carroll"]]
data_carroll_whiteside <- data_list_county[["Carroll/Whiteside"]]We are now adding columns for the coordinates of each county, the coordinates were obtained by searching for the counties on openstreetmap.
data_will <- data_will %>%
mutate(longitude_column = -88.0817,
latitude_column = 41.5250)
data_jo_daviess <- data_jo_daviess %>%
mutate(longitude_column = -90.4290,
latitude_column = 42.4167)
data_grundy <- data_grundy %>%
mutate(longitude_column = -88.4210,
latitude_column = 41.3570)
data_lee <- data_lee %>%
mutate(longitude_column = -89.4850,
latitude_column = 41.8430)
data_carroll <- data_carroll %>%
mutate(longitude_column = -89.9826,
latitude_column = 42.0956)
data_lafayette <- data_lafayette %>%
mutate(longitude_column = -90.1160,
latitude_column = 42.6825)
data_iowa <- data_iowa %>%
mutate(longitude_column = -90.1160,
latitude_column = 42.6825)
data_dane <- data_dane %>%
mutate(longitude_column = -89.4012,
latitude_column = 43.0731)
data_green <- data_green %>%
mutate(longitude_column = -89.6387,
latitude_column = 42.6017)
data_grant <- data_grant %>%
mutate(longitude_column = -90.7082,
latitude_column = 42.8475)
data_rock <- data_rock %>%
mutate(longitude_column = -89.0187,
latitude_column = 42.6828)
data_monroe <- data_monroe %>%
mutate(longitude_column = -90.8129,
latitude_column = 43.9447)
data_lee_ogle <- data_lee_ogle %>%
mutate(longitude_column = -89.4038,
latitude_column = 41.9293)
data_carroll_whiteside <- data_carroll_whiteside %>%
mutate(longitude_column = -89.9742,
latitude_column = 41.9527)Now, for each county dataset, we subdivide the said dataset for each year when at least one nest has been observed in this county.
county_names <- c("data_will", "data_jo_daviess", "data_lafayette", "data_iowa",
"data_dane", "data_green", "data_grant", "data_grundy",
"data_lee_ogle", "data_lee", "data_rock", "data_monroe",
"data_carroll", "data_carroll_whiteside")
county_dataframes <- mget(county_names)
tables <- c()
for(i in seq_along(county_dataframes)) {
county <- county_dataframes[[i]]
county_name <- county_names[i]
if (!is.data.frame(county)) {
print(paste0("Error: ", county_name, " is not a dataframe"))
next
}
if (!"Year" %in% colnames(county)) {
print(paste0("Error: ", county_name, " does not contain a 'Year' column"))
next
}
data_county_year <- split(county, county$Year)
for(year in min(county$Year):max(county$Year)){
tableau <- data_county_year[[as.character(year)]]
if (!is.null(tableau)) {
variable_name <- paste0(county_name, "_", year)
tables <- c(tables, variable_name)
assign(variable_name, tableau, envir = .GlobalEnv)
}
}
}We went from a full dataset with everything mixed-up to multiple datasets for each year and each county when an observation is available.
Here are, for example, the first rows of the dataframe related to the county of Will in 1995
head(data_will_1995) Nest_ID State County Habitat Species Year Nest_Fate Initiation_Date
1 745JAAP Illinois Will Pasture Bobolink 1995 0 58
2 748JAAP Illinois Will Pasture Bobolink 1995 0 52
3 753JAAP Illinois Will Pasture Bobolink 1995 1 51
4 754JAAP Illinois Will Pasture Bobolink 1995 0 60
5 755JAAP Illinois Will Pasture Bobolink 1995 0 53
6 758JAAP Illinois Will Pasture Bobolink 1995 0 65
Number_Fledged Nest_End_Date longitude_column latitude_column
1 0 78 -88.0817 41.525
2 0 74 -88.0817 41.525
3 6 75 -88.0817 41.525
4 0 75 -88.0817 41.525
5 0 69 -88.0817 41.525
6 0 78 -88.0817 41.525The main information that we want to present on the map are the mean number of fledged birds by nest and the amount of data available for each county and each year.
Here is the creation of a summary dataframe that contains all these informations for each dataframe.
annee <- c()
taux_de_reussite <- c()
nb_donnees <- c()
lat <- c()
lon<- c()
# Creation of a summary for each year
for(table_name in tables){
tablecreated <- get(table_name)
annee <- c(annee, tablecreated$Year[1])
taux_de_reussite <- c(taux_de_reussite, sum(tablecreated$Number_Fledged)/nrow(tablecreated))
nb_donnees <- c(nb_donnees, nrow(tablecreated))
lat <- c(lat, tablecreated$latitude_column[1])
lon <- c(lon, tablecreated$longitude_column[1])
}
# Creating a dataframe of thoose summaries
tableau <- data.frame(
annee = annee,
Mean_number_fledged_by_nest = taux_de_reussite,
nb_donnees = nb_donnees,
lat = lat,
lon = lon
)
# Seting the dataframe as a spatial class in order to create a map
tableau_sf <- st_as_sf(tableau, coords = c("lon", "lat"), crs = 4326)
tableau_sf <- st_transform(tableau_sf, crs = st_crs(us_states))As we now have all the data of interest in one single organized table, we can actually create the map.
tmap_mode("view")tmap mode set to interactive viewingbird_anim <- tm_shape(us_states) +
tm_polygons() +
tm_shape(tableau_sf) +
tm_symbols(size = "Mean_number_fledged_by_nest", col = "nb_donnees",
style = "quantile", title.size = "Mean number fledged by nest", title.col = "Number of nest observed") +
tm_layout(title = "Bird Observations Over Time",
legend.position = c("left", "bottom"),
frame = FALSE,
legend.show = T) +
tm_facets(by = "annee", nrow = 1, ncol = 1, free.coords = FALSE)And now, we just have to run the following cell to display the map.
tmap_animation(bird_anim)Creating frames================================================================================
Creating animationPlease, check out the newly created map on the “Viewer” panel of your Rstudio application.
I believe that the first thing we can say about the data, is that it is unevenly distributed. Depending on the year and the county, the number of observed nests changes ; and sometimes not even a single observation is available.
In this part, several statistical tests are performed in order to answer questions.
H0 : there is no differences between species
First, we observe the data with a boxplot. There is no significant differences through the boxplots.
ggplot(data = data,
aes(x = Habitat,
y = Nest_End_Date)
) +
geom_boxplot(aes(fill = Habitat)) +
ggtitle("Nest_End_Date depending on the Habitat")
theme(
axis.text.x = element_blank(),
plot.title = element_text(face = "bold")
)List of 2
$ axis.text.x: list()
..- attr(*, "class")= chr [1:2] "element_blank" "element"
$ plot.title :List of 11
..$ family : NULL
..$ face : chr "bold"
..$ colour : NULL
..$ size : NULL
..$ hjust : NULL
..$ vjust : NULL
..$ angle : NULL
..$ lineheight : NULL
..$ margin : NULL
..$ debug : NULL
..$ inherit.blank: logi FALSE
..- attr(*, "class")= chr [1:2] "element_text" "element"
- attr(*, "class")= chr [1:2] "theme" "gg"
- attr(*, "complete")= logi FALSE
- attr(*, "validate")= logi TRUEThen, we test the normality of the data. All the p-values are ranged in a dataframe.
data |>
# Selection of only two columns of interest
dplyr::select(
Species,
Number_Fledged
) |>
# Calculation of the p-value of the shapiro test for each species
dplyr::group_by(Species) |>
dplyr::summarise(
shap = shapiro.test(Number_Fledged)$p
)# A tibble: 8 × 2
Species shap
<fct> <dbl>
1 Bobolink 2.64e-23
2 Dickcissel 5.49e-29
3 Eastern_Meadowlark 5.26e-36
4 Grasshopper_Sparrow 1.80e-32
5 Henslow's_Sparrow 5.38e-11
6 Savannah_Sparrow 1.65e-35
7 Vesper_Sparrow 2.70e-18
8 Western_Meadowlark 4.43e-10Conclusion : each subset does not follow the normality. We can perform a U test (non parametric test) :
# Construction of an empty 8x8 dataframe. It will contains each p-value of the U test
cor_df <- as.data.frame(
matrix(nrow = 8, ncol = 8, NA)
)
# Retrive the species names
species <- as.character(unique(data$Species))
# Rename the matrix
colnames(cor_df) <- species
rownames(cor_df) <- species
data_species <- data |>
dplyr::select(
Species,
Number_Fledged
) |>
dplyr::arrange(Species)
for (sp1 in (1:(length(species)))){
for (sp2 in (1:length(species))){
## Retrieve the data of the species 1
species_1 <- data_species |>
dplyr::filter(Species == species[sp1]) |>
dplyr::select(Number_Fledged)
## Retrieve the data of the species 2
species_2 <- data_species |>
dplyr::filter(Species == species[sp2]) |>
dplyr::select(Number_Fledged)
## Formating of the vector containing the number of fledged birds.
species_1 <- as.vector(species_1)$Number_Fledged
species_2 <- as.vector(species_2)$Number_Fledged
## To put the p.values on the correlation matrix
cor_df[sp1,sp2] <- wilcox.test(species_1, species_2)$p.value
}
}Now, we can observe the p-values in the following matrix :
ggcorrplot(
corr = cor_df,
lab = TRUE,
lab_size = 3,
show.diag = TRUE,
type = "upper"
) +
theme(
axis.text.x = element_text(size = 8,
angle = 45),
axis.text.y = element_text(size = 8)
) +
scale_fill_gradient2(
low = "tomato2",
high = "springgreen3",
midpoint = 0.2) +
ggtitle("P-values of the U-tests with the number of fledged birds as variable")Scale for fill is already present.
Adding another scale for fill, which will replace the existing scale.
Observation : we see that there is globally no differences in the mean of the groups. So we keep H0.
In the following chunks, a list named data_summariser is created and it will contains several dataframes. These dataframes summarise the different quantitative variables (i.e. Nest_Fate, Initiation_Date, Number_Fledged and Nest_End_Date) by the means and for each factor (i.e. County, State, Species and Habitat). There is one dataframe per factor. The goal is to better visualise the repartition of the species as a function of a factor AND to see the means.
Here, we summarise with the factor : Species.
## Calculation of the mean of each variables depending on the Species
data_sp <- data |>
dplyr::select(
Species,Nest_Fate,Initiation_Date, Number_Fledged, Nest_End_Date
)|>
dplyr::group_by(
Species
) |>
dplyr::summarise(
count = n(),
prop_Nest_Fate = sum(Nest_Fate) / length(Nest_Fate),
mean_Init_Date = mean(Initiation_Date),
mean_Number_Fledged = mean(Number_Fledged),
mean_Nest_End_Date = mean(Nest_End_Date),
)
## Calculation of the mean of each variables depending on the habitat
data_hab <- data |>
dplyr::select(
Habitat,Nest_Fate,Initiation_Date, Number_Fledged, Nest_End_Date
)|>
dplyr::group_by(
Habitat
) |>
dplyr::summarise(
count = n(),
prop_Nest_Fate = sum(Nest_Fate) / length(Nest_Fate),
mean_Init_Date = mean(Initiation_Date),
mean_Number_Fledged = mean(Number_Fledged),
mean_Nest_End_Date = mean(Nest_End_Date),
)
## Calculation of the mean of each variables depending on the state
data_state <- data |>
dplyr::select(
State,Nest_Fate,Initiation_Date, Number_Fledged, Nest_End_Date
)|>
dplyr::group_by(
State
) |>
dplyr::summarise(
count = n(),
prop_Nest_Fate = sum(Nest_Fate) / length(Nest_Fate),
mean_Init_Date = mean(Initiation_Date),
mean_Number_Fledged = mean(Number_Fledged),
mean_Nest_End_Date = mean(Nest_End_Date),
)
## Calculation of the mean of each variables depending on the county
data_county <- data |>
dplyr::select(
State, County, Nest_Fate,Initiation_Date, Number_Fledged, Nest_End_Date
)|>
dplyr::group_by(
State, County
) |>
dplyr::summarise(
count = n(),
prop_Nest_Fate = sum(Nest_Fate) / length(Nest_Fate),
mean_Init_Date = mean(Initiation_Date),
mean_Number_Fledged = mean(Number_Fledged),
mean_Nest_End_Date = mean(Nest_End_Date),
)`summarise()` has grouped output by 'State'. You can override using the
`.groups` argument.data_sp# A tibble: 8 × 6
Species count prop_Nest_Fate mean_Init_Date mean_Number_Fledged
<fct> <int> <dbl> <dbl> <dbl>
1 Bobolink 390 0.472 59.5 1.72
2 Dickcissel 470 0.347 85.9 1.05
3 Eastern_Meadowlark 726 0.321 61.4 1.01
4 Grasshopper_Sparrow 693 0.404 73.6 1.39
5 Henslow's_Sparrow 72 0.389 63.2 1.18
6 Savannah_Sparrow 664 0.295 66.5 0.887
7 Vesper_Sparrow 174 0.345 69.4 0.908
8 Western_Meadowlark 68 0.426 68.9 1.49
# ℹ 1 more variable: mean_Nest_End_Date <dbl>We create a list called data_summariser that will contains each previously created tables.
data_summariser <-list() # Creation of the due list data_summariser
data_summariser$Species <- data_sp # Add the Species table
data_summariser$Habitat <- data_hab
data_summariser$State <- data_state
data_summariser$County <- data_county
data_summariser$Species
# A tibble: 8 × 6
Species count prop_Nest_Fate mean_Init_Date mean_Number_Fledged
<fct> <int> <dbl> <dbl> <dbl>
1 Bobolink 390 0.472 59.5 1.72
2 Dickcissel 470 0.347 85.9 1.05
3 Eastern_Meadowlark 726 0.321 61.4 1.01
4 Grasshopper_Sparrow 693 0.404 73.6 1.39
5 Henslow's_Sparrow 72 0.389 63.2 1.18
6 Savannah_Sparrow 664 0.295 66.5 0.887
7 Vesper_Sparrow 174 0.345 69.4 0.908
8 Western_Meadowlark 68 0.426 68.9 1.49
# ℹ 1 more variable: mean_Nest_End_Date <dbl>
$Habitat
# A tibble: 4 × 6
Habitat count prop_Nest_Fate mean_Init_Date mean_Number_Fledged
<fct> <int> <dbl> <dbl> <dbl>
1 Cool-season_Grassland 677 0.403 65.3 1.39
2 Pasture 1683 0.319 69.2 1.01
3 Prairie 496 0.363 70.4 1.12
4 Warm-season_Grassland 401 0.456 72.6 1.48
# ℹ 1 more variable: mean_Nest_End_Date <dbl>
$State
# A tibble: 2 × 6
State count prop_Nest_Fate mean_Init_Date mean_Number_Fledged
<fct> <int> <dbl> <dbl> <dbl>
1 Illinois 1073 0.314 74.6 1.02
2 Wisconsin 2184 0.383 66.2 1.23
# ℹ 1 more variable: mean_Nest_End_Date <dbl>
$County
# A tibble: 14 × 7
# Groups: State [2]
State County count prop_Nest_Fate mean_Init_Date mean_Number_Fledged
<fct> <fct> <int> <dbl> <dbl> <dbl>
1 Illinois Carroll 15 0.333 74.7 0.733
2 Illinois Carroll/Wh… 5 0.2 73.4 0.8
3 Illinois Grundy 53 0.208 72.3 0.642
4 Illinois Jo_Daviess 292 0.435 75.8 1.43
5 Illinois Lee 20 0.3 84.3 1.1
6 Illinois Lee/Ogle 297 0.286 78.9 0.892
7 Illinois Will 391 0.261 70.3 0.877
8 Wisconsin Dane 441 0.508 64.3 1.81
9 Wisconsin Grant 101 0.198 65.4 0.554
10 Wisconsin Green 181 0.343 64.9 1.10
11 Wisconsin Iowa 744 0.349 63.9 1.15
12 Wisconsin Lafayette 481 0.343 69.7 0.983
13 Wisconsin Monroe 233 0.442 70.8 1.33
14 Wisconsin Rock 3 0.667 94.7 0.667
# ℹ 1 more variable: mean_Nest_End_Date <dbl>Convert dates to months to make a MCA:
### Creation of a function to replace the number by a month
num_to_month <- function(num){
if (num %in% (1:30)){
res <- "april"
} else if (num %in% (31:61)){
res <- "may"
} else if (num %in% (62:91)){
res <- "june"
} else if (num %in% (92:122)){
res <- "july"
} else if (num %in% (123:153)){
res <- "august"
} else {
res <- "september"
}
return (res)
}Now, we trasform all the quantitative variable into factors.
## Conversion into months
data_ACM <- data
data_ACM$Initiation_Date <- lapply(X = data_ACM$Initiation_Date,
FUN = num_to_month
)
data_ACM$Nest_End_Date <- lapply(X = data_ACM$Nest_End_Date,
FUN = num_to_month
)
## Conversion into factors
data_ACM <- data_ACM |>
dplyr::mutate(Nest_Fate = as.factor(Nest_Fate),
Initiation_Date = as.factor(unlist(Initiation_Date)),
Number_Fledged = as.factor(Number_Fledged),
Nest_End_Date = as.factor(unlist(Nest_End_Date)),
Year = as.factor(Year)
)Before doing the MCA analysis, we must verify that all the modalities represent at least 3% of the data
# Proportions de chaques modalités dans chaques variables:
prop.table(table(data_ACM$State))*100
Illinois Wisconsin
32.94443 67.05557 prop.table(table(data_ACM$County))*100
Carroll Carroll/Whiteside Dane Grant
0.4605465 0.1535155 13.5400675 3.1010132
Green Grundy Iowa Jo_Daviess
5.5572613 1.6272644 22.8431072 8.9653055
Lafayette Lee Lee/Ogle Monroe
14.7681916 0.6140620 9.1188210 7.1538225
Rock Will
0.0921093 12.0049125 prop.table(table(data_ACM$Habitat))*100
Cool-season_Grassland Pasture Prairie
20.78600 51.67332 15.22874
Warm-season_Grassland
12.31194 prop.table(table(data_ACM$Species))*100
Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
11.974209 14.430457 22.290451 21.277249
Henslow's_Sparrow Savannah_Sparrow Vesper_Sparrow Western_Meadowlark
2.210623 20.386859 5.342340 2.087811 prop.table(table(data_ACM$Year))*100
1991 1992 1993 1994 1995 1996 1997
2.0878109 0.8289837 0.7368744 0.7982806 6.3248388 8.0135094 10.1320233
1998 1999 2000 2001 2002 2003 2004
9.8556954 8.3512435 13.7549893 8.7503838 5.5572613 1.7193737 3.1317163
2005 2006 2007 2008 2009 2010 2011
1.6886706 2.7939822 4.2677310 5.5265582 2.0571078 2.2413264 1.3816395 prop.table(table(data_ACM$Nest_Fate))*100
0 1
63.98526 36.01474 prop.table(table(data_ACM$Number_Fledged))*100
0 1 2 3 4 5 6
63.9852625 3.8378876 6.1099171 9.7635861 10.8688978 5.0046055 0.4298434 prop.table(table(data_ACM$Initiation_Date))*100
april august july june may
1.4737488 0.0307031 14.2462389 47.8354314 36.4138778 prop.table(table(data_ACM$Nest_End_Date))*100
april august july june may
0.0307031 2.8860915 39.5455941 47.0371508 10.5004605 Some of the modalities are under-represented. We must delete them. The modalities under-represented are: Countries Carroll, Carroll/Whiteside, Grundy, Lee and Rock, Species Henslow’s Sparrow and Western Meadowlark, half of the years modalities, 6 fledged chicks, and months April and August for both nest initiation date and nest end date.
prop.table(table(data_ACM$County))*100 < 3
Carroll Carroll/Whiteside Dane Grant
TRUE TRUE FALSE FALSE
Green Grundy Iowa Jo_Daviess
FALSE TRUE FALSE FALSE
Lafayette Lee Lee/Ogle Monroe
FALSE TRUE FALSE FALSE
Rock Will
TRUE FALSE # We must delete the data of counties Carroll, Carroll/Whiteside, Grundy, Lee and Rock
data_ACM <- data_ACM[-which(data_ACM$County == "Carroll" |
data_ACM$County == "Carroll/Whiteside" |
data_ACM$County == "Grundy" |
data_ACM$County == "Lee" |
data_ACM$County == "Rock"),]
data_ACM$County <- droplevels(data_ACM$County)prop.table(table(data_ACM$Species))*100 < 3
Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
FALSE FALSE FALSE FALSE
Henslow's_Sparrow Savannah_Sparrow Vesper_Sparrow Western_Meadowlark
TRUE FALSE FALSE TRUE # We must delete the data of species Henslow's_Sparrow and Western_Meadowlark
data_ACM <- data_ACM[-which(data_ACM$Species == "Henslow's_Sparrow" |
data_ACM$Species == "Western_Meadowlark"),]
data_ACM$Species <- droplevels(data_ACM$Species)prop.table(table(data_ACM$Year))*100 < 3
1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
TRUE TRUE TRUE TRUE FALSE FALSE FALSE FALSE FALSE FALSE FALSE FALSE TRUE
2004 2005 2006 2007 2008 2009 2010 2011
FALSE TRUE TRUE FALSE FALSE TRUE TRUE TRUE summary(prop.table(table(data_ACM$Year))*100 < 3) Mode FALSE TRUE
logical 11 10 # As half of the modalities are under-represented, we will group the years by 3.
data_ACM <- data_ACM %>%
mutate(Year = factor(case_when(
Year %in% c("1991", "1992", "1993") ~ "1991-1993",
Year %in% c("1994", "1995", "1996") ~ "1994-1996",
Year %in% c("1997", "1998", "1999") ~ "1997-1999",
Year %in% c("2000", "2001", "2002") ~ "2000-2002",
Year %in% c("2003", "2004", "2005") ~ "2003-2005",
Year %in% c("2006", "2007", "2008") ~ "2006-2008",
Year %in% c("2009", "2010", "2011") ~ "2009-2011"
), levels = c("1991-1993", "1994-1996", "1997-1999", "2000-2002", "2003-2005", "2006-2008", "2009-2011")))
prop.table(table(data_ACM$Year))*100 < 3
1991-1993 1994-1996 1997-1999 2000-2002 2003-2005 2006-2008 2009-2011
FALSE FALSE FALSE FALSE FALSE FALSE FALSE # None of the years are still under-represented.prop.table(table(data_ACM$Number_Fledged))*100 < 3
0 1 2 3 4 5 6
FALSE FALSE FALSE FALSE FALSE FALSE TRUE # We will group the nest with 5 or 6 fledged chicks with a modality labelled ">5"
levels(data_ACM$Number_Fledged) <- c(levels(data_ACM$Number_Fledged), ">5")
data_ACM[which(data_ACM$Number_Fledged == 5 | data_ACM$Number_Fledged == 6),]$Number_Fledged <- as.factor(">5")
data_ACM$Number_Fledged <- droplevels(data_ACM$Number_Fledged)prop.table(table(data_ACM$Initiation_Date))*100 < 3
april august july june may
TRUE TRUE FALSE FALSE FALSE # We must delete the data with an initiation date in August and April.
data_ACM <- data_ACM[-which(data_ACM$Initiation_Date == "august" |
data_ACM$Initiation_Date == "april"),]
data_ACM$Initiation_Date <- droplevels(data_ACM$Initiation_Date)prop.table(table(data_ACM$Nest_End_Date))*100 < 3
april august july june may
TRUE TRUE FALSE FALSE FALSE # We must delete the data with an end date in August and April.
data_ACM <- data_ACM[-which(data_ACM$Nest_End_Date == "august" |
data_ACM$Nest_End_Date == "april"),]
data_ACM$Nest_End_Date <- droplevels(data_ACM$Nest_End_Date)Now, we can check again that no modalities are under-represented (threshold 3%).
# Proportions de chaques modalités dans chaques variables:
prop.table(table(data_ACM$State))*100
Illinois Wisconsin
30.26634 69.73366 prop.table(table(data_ACM$County))*100
Dane Grant Green Iowa Jo_Daviess Lafayette Lee/Ogle
12.832930 3.424421 5.984089 23.555863 7.990315 15.980630 9.477689
Monroe Will
7.955725 12.798340 prop.table(table(data_ACM$Habitat))*100
Cool-season_Grassland Pasture Prairie
19.43964 53.58008 15.25424
Warm-season_Grassland
11.72605 prop.table(table(data_ACM$Species))*100
Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
13.386371 13.870633 22.103079 22.206849
Savannah_Sparrow Vesper_Sparrow
22.552750 5.880318 prop.table(table(data_ACM$Year))*100
1991-1993 1994-1996 1997-1999 2000-2002 2003-2005 2006-2008 2009-2011
3.562781 14.285714 27.429955 30.854376 6.675891 11.587686 5.603597 prop.table(table(data_ACM$Nest_Fate))*100
0 1
64.99481 35.00519 prop.table(table(data_ACM$Number_Fledged))*100
0 1 2 3 4 >5
64.994811 3.493601 6.226219 9.408509 10.446212 5.430647 prop.table(table(data_ACM$Initiation_Date))*100
july june may
11.58769 50.22484 38.18748 prop.table(table(data_ACM$Nest_End_Date))*100
july june may
41.093047 49.394673 9.512279 All the modalities are enough represented. We can now start the MCA analysis.
# MCA without the Nest IDs.
ACM_bird <- MCA(data_ACM[,-1])fviz_eig(ACM_bird, main="histogram of % inertia", addlabels = T)
The inertia holded by the first axis is very low (9.3%)
Let’s see wich modalities are significantly contributing to the analysis, for the axis 1 and 2
fviz_contrib(ACM_bird, choice='var', axes=1)
fviz_contrib(ACM_bird, choice='var', axes=2)
Let’s print only the modalities above the thresold of 1/n, n is the number of modalities, and the modalities above this thresold are significantly contributing to the MCA.
# We set the thresold for significant modalities
threshold <- (1/nrow(ACM_bird$var$contrib))*100
# We extract significant contributions for dim 1
var_contrib <- get_mca_var(ACM_bird)$contrib
significant_vars_dim1 <- rownames(var_contrib)[var_contrib[, 1] > threshold]
length(significant_vars_dim1)[1] 12# We extract significant contributions for dim 2
significant_vars_dim2 <- rownames(var_contrib)[var_contrib[, 2] > threshold]
length(significant_vars_dim2)[1] 15significant_vars_tot <- unique(c(significant_vars_dim1, significant_vars_dim2))
length(significant_vars_tot)[1] 24# There is 24 significant modalities on dimension 1 and 2. Let's print them on the graph
fviz_mca_var(ACM_bird, col.var='blue', repel = T, alpha.var = "contrib")
fviz_mca_var(ACM_bird, col.var='blue', repel = T, select.var = list(contrib = 24))
# Representation of the individuals between axis 1 and 2, coloring for each variable
plotellipses(ACM_bird, means = F)
We can see that the nests are clearly separated by the state they come from. We can see a light shift on axis 2 with the nest fate values. The other variables are forming less distinct groups.
On axis 1, the most contributing variable is the state Illinois. It is associated with the specie Dickcissel, with the county Will and Lee/Ogle, years 1994-1996, and the warm season on Grassland. On the other side of the axis, the specie Savannah Sparrow is higly associated with years 2000-2002, and also with the county Lafayette and Iowa and the state Wisconsin.
On axis 2, the most contributing variable is the county Dane, and associated with years 2006-2008 and cool season Grassland. It is also associated with the specie Bobolink, the nest fate equal 1, and the number fledged superior or equal to 5. To say otherwise, the nesting birds have a better success in the county Dane, especially between 2006 and 2008 and during the cool season in grasslands. The specie Bobolink is also highly successive in nesting a lot of chicks. On the other side of the axis, the variable significantly contributing are years 1997-1999, state Illinois, nest end in July, habitat pasture and county Jo Daviess, with nest fate 0 and number fledged 0. Therefore, it is most likely that these conditions are decreasing the probabilities of success in nesting chicks.
In this part we choose to explain the nest fate with different variables. We chose to focus on the state of Illinois because adding the state might lead to bad modelling as there might be not enough data for each of them.
Variables are :
Aim of the study : We want to model the fate of the nest as a response of the County, the Habitat, the Species, the Year, the Initiation date. We are looking for a model that could explain the distribution of Nest fate.
Method : Here our response variable is either a sucess or a failure. This response follows a binomial distribution with the probability density function \[P(X = k) = \binom{n}{k} p^k (1-p)^{n-k}\]
The term \[ \binom{n}{k} \] is the binomial coefficient, which represents the number of ways to choose ( k ) successes from ( n ) trials.
\[ p \] is the probability of success on a single trial.
\[1 - p\] is the probability of failure on a single trial.
Every statistical analysis starts with the exploration of the dataset.
Here we are checking the values of Y (the values of Nest Fate)
# Number of 0 and 1 in Y
table(data_Illinois$Nest_Fate)
0 1
736 337 According to the results table, it appears that overall, there are roughly twice as many failures as successes.
Here we have one quantitative explanatory variable \(X\). We check its distribution and if there is any outlier value.
par(mfrow=c(1,3))
# Length
# Cleveland plot
dotchart(data_Illinois$Initiation_Date,pch=16,col='dodgerblue3',xlab='Initiation Date')
# Histogram
hist(data_Illinois$Initiation_Date,col='dodgerblue3',xlab="Initiation Date",main="")
# Quantile-Quantile plot
qqnorm(data_Illinois$Initiation_Date,pch=16,col='dodgerblue3',xlab='')
qqline(data_Illinois$Initiation_Date,col='red',lwd=2)
We do not observe any outliers and it seems that the initiation date of the nesting period follows a normal distribution.
We need to analyse the modalities and the number of individuals for each modality.
#| echo: true
#| code-fold: true
#| code-summary: "Show the code"
# Factor County
summary(data_Illinois$County) Carroll Carroll/Whiteside Dane Grant
15 5 0 0
Green Grundy Iowa Jo_Daviess
0 53 0 292
Lafayette Lee Lee/Ogle Monroe
0 20 297 0
Rock Will
0 391 # Factor Habitat
summary(data_Illinois$Habitat)Cool-season_Grassland Pasture Prairie
242 537 137
Warm-season_Grassland
157 # Factor Species
summary(data_Illinois$Species) Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
62 314 229 350
Henslow's_Sparrow Savannah_Sparrow Vesper_Sparrow Western_Meadowlark
5 13 54 46 # Factor Year
summary(data_Illinois$Year)1995 1996 1997 1998 2007 2008 2009
166 261 330 166 52 60 38 The results tables provided by our script show different things. First of all for the County variable we can observe that some counties have very little records. For example Carrol/Whiteside has 5 records of nest while counties like Jo Daviess have 292 records. This could lead to mis-modelling so attention on the model results is necessary. For Habitat variable it seems that one habitat in particular (Pasture) has more records than the other. For the Species variable, similarly to county variable, we observe that some species have more records than others. We observe the same for the Year variable.
We can then analyse graphically if we might have relationships between \(Y\) and \(Xs\).
par(mfrow=c(1,3), mar=c(5, 4, 4, 2) + 0.1)
# Initiation_Date
plot(data_Illinois$Nest_Fate ~ data_Illinois$Initiation_Date,
pch=16,
col='dodgerblue3',
xlab='Initiation_Date',
ylab='Nest_Fate',
cex.lab=1.2,
cex.axis=1.2)
# Define the color palette
color <- c('dodgerblue3', 'darkred', 'forestgreen', 'gold',
'purple', 'orange', 'cyan', 'magenta',
'salmon', 'lightseagreen', 'plum',
'yellowgreen', 'sandybrown', 'steelblue')
# County
mosaicplot(data_Illinois$Nest_Fate ~ data_Illinois$County,
col = color,
main="",
cex.axis=0.8,
las=2)
title("Relationship Nest Fate & County", cex.main=1.2)
# Habitat
mosaicplot(data_Illinois$Nest_Fate ~ data_Illinois$Habitat,
col = color[1:4],
main="",
cex.axis=0.8,
las=2)
title("Relationship Nest Fate & Habitat", cex.main=1.2)
# Species
mosaicplot(data_Illinois$Nest_Fate ~ data_Illinois$Species,
col = color[1:8],
main="",
cex.axis=0.8,
las=2)
title("Relationship Nest Fate & Species", cex.main=1.2)
# Year
mosaicplot(data_Illinois$Nest_Fate ~ data_Illinois$Year,
col = color[1:6],
main="",
cex.axis=0.8,
las=2)
title("Relationship Nest Fate & Year", cex.main=1.2)
Looking at those graphs it doesn’t seems like the Initiation_date, the County or the Habitat has any effects on the Nest_fate. Maybe a little bit for County but the statistical analysis afterward will enable us to have more information on which variable has an effect. For the Year and the Species we might observe a little difference, but still really light.
In any modelling approach there is a need to check for interactions between variables. In our study we judge that there is none.
To avoid multicollinearity in modeling, we need to analyze how the explanatory variables \(X_s\) are related. It is important to check for collinearity. Indeed if some variables are correlated they measure the same thing and therefore keeping both of them might lead to bad prediction.
# Checking collinearity between qualitative explanatory variable
# Contingency table between County and Habitat
table(data_Illinois$County, data_Illinois$Habitat)
Cool-season_Grassland Pasture Prairie Warm-season_Grassland
Carroll 0 0 15 0
Carroll/Whiteside 0 0 5 0
Dane 0 0 0 0
Grant 0 0 0 0
Green 0 0 0 0
Grundy 0 6 26 21
Iowa 0 0 0 0
Jo_Daviess 7 264 7 14
Lafayette 0 0 0 0
Lee 4 12 4 0
Lee/Ogle 104 39 58 96
Monroe 0 0 0 0
Rock 0 0 0 0
Will 127 216 22 26# Contingency table between Species and Year
table(data_Illinois$Species, data_Illinois$Year)
1995 1996 1997 1998 2007 2008 2009
Bobolink 14 22 20 1 2 1 2
Dickcissel 50 60 83 27 35 31 28
Eastern_Meadowlark 46 119 41 13 5 1 4
Grasshopper_Sparrow 41 50 128 93 10 25 3
Henslow's_Sparrow 4 1 0 0 0 0 0
Savannah_Sparrow 7 3 3 0 0 0 0
Vesper_Sparrow 4 6 28 13 0 2 1
Western_Meadowlark 0 0 27 19 0 0 0# Contingency table between Habitat and Species
table(data_Illinois$Habitat, data_Illinois$Species)
Bobolink Dickcissel Eastern_Meadowlark
Cool-season_Grassland 18 162 42
Pasture 37 60 130
Prairie 7 37 39
Warm-season_Grassland 0 55 18
Grasshopper_Sparrow Henslow's_Sparrow Savannah_Sparrow
Cool-season_Grassland 13 4 2
Pasture 220 0 7
Prairie 49 1 0
Warm-season_Grassland 68 0 4
Vesper_Sparrow Western_Meadowlark
Cool-season_Grassland 1 0
Pasture 37 46
Prairie 4 0

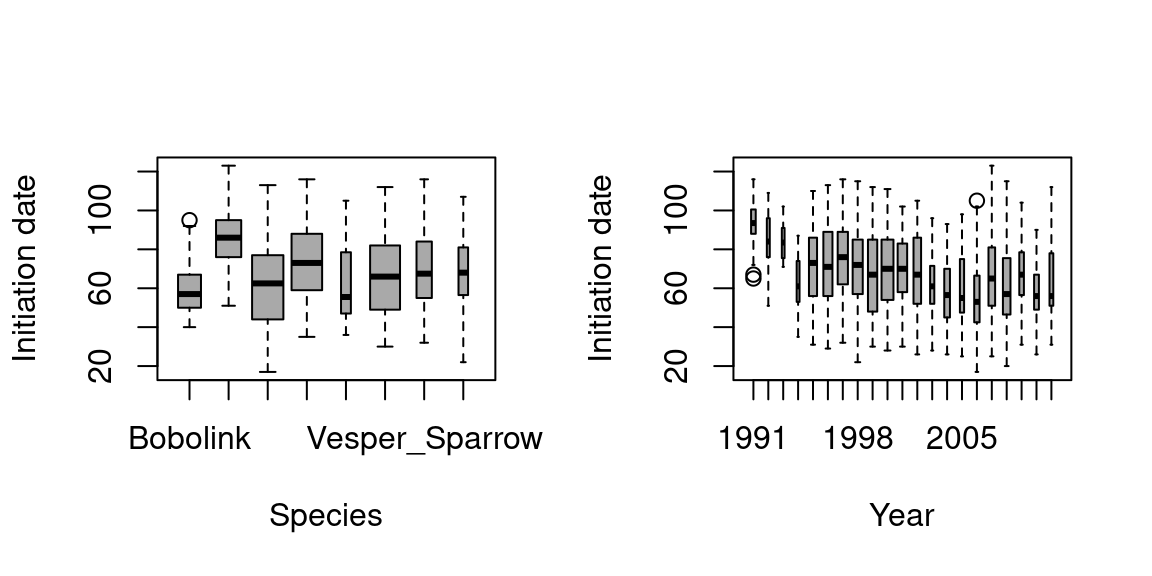

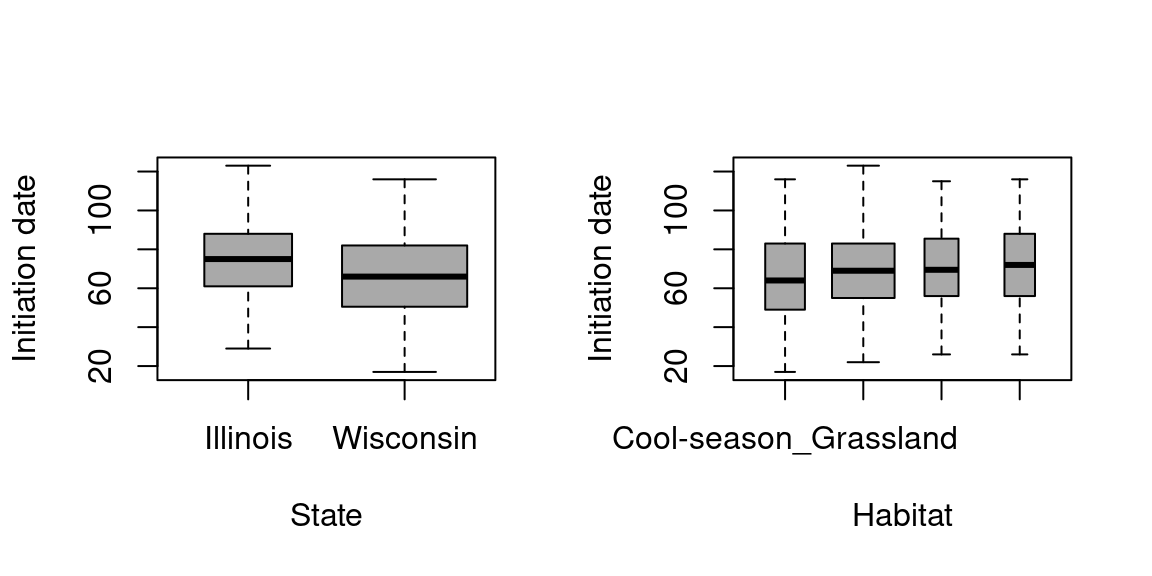

Warm-season_Grassland 12 0# Boxplots to check for relationship between Initiation_Date and the qualitative explanatory variables
# Initiation_Date and County
boxplot(data_Illinois$Initiation_Date ~ data_Illinois$County,
xlab="County",
ylab="Initiation Date",
cex.axis=0.8)
# Initiation_Date and Habitat
boxplot(data_Illinois$Initiation_Date ~ data_Illinois$Habitat,
xlab="Habitat",
ylab="Initiation Date",
cex.axis=0.8)
# Initiation_Date and Species
boxplot(data_Illinois$Initiation_Date ~ data_Illinois$Species,
xlab="Species",
ylab="Initiation Date",
cex.axis=0.4)
# Initiation_Date and Year
boxplot(data_Illinois$Initiation_Date ~ data_Illinois$Year,
xlab="Year",
ylab="Initiation Date",
cex.axis=0.8)
Here it seems that there is a strong collinearity between County and Habitat as well as between Species and Year and also between Species and Habitat. Therefore, we are not going to keep County, Habitat and Year as explanatory variables in our model.
Because our response variable is a binary variable that follows a binomial distribution we have a link function : the logit.
# Model formulation
mod1<-glm(Nest_Fate~Species
+ Initiation_Date
,data=data_Illinois
,family=binomial(link="logit"))
# Then we check for significance
drop1(mod1,test="Chi")Single term deletions
Model:
Nest_Fate ~ Species + Initiation_Date
Df Deviance AIC LRT Pr(>Chi)
<none> 1296.3 1314.3
Species 7 1334.0 1338.0 37.701 3.453e-06 ***
Initiation_Date 1 1296.4 1312.4 0.029 0.8656
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1The results table shows that Initiation_Date is not significant. However the AIC with Initiation_Date is better which means we should keep this variable despite its lack of significance.
# Coefficients of the model
summary(mod1)
Call:
glm(formula = Nest_Fate ~ Species + Initiation_Date, family = binomial(link = "logit"),
data = data_Illinois)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) -1.097853 0.381114 -2.881 0.00397 **
SpeciesDickcissel 0.189410 0.329713 0.574 0.56565
SpeciesEastern_Meadowlark -0.382551 0.335541 -1.140 0.25424
SpeciesGrasshopper_Sparrow 0.664586 0.315297 2.108 0.03505 *
SpeciesHenslow's_Sparrow -0.327407 1.155216 -0.283 0.77686
SpeciesSavannah_Sparrow -0.655641 0.822713 -0.797 0.42549
SpeciesVesper_Sparrow 0.180147 0.420980 0.428 0.66871
SpeciesWestern_Meadowlark 0.961508 0.416342 2.309 0.02092 *
Initiation_Date 0.000686 0.004052 0.169 0.86557
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for binomial family taken to be 1)
Null deviance: 1335.5 on 1072 degrees of freedom
Residual deviance: 1296.3 on 1064 degrees of freedom
AIC: 1314.3
Number of Fisher Scoring iterations: 4The following equation is the one of the model : \[\log\left(\frac{p}{1-p}\right) = -1.097853 + 0.189410 \cdot \text{Species}_{\text{Dickcissel}} - 0.382551 \cdot \text{Species}_{\text{Eastern Meadowlark}} + 0.664586 \cdot \text{Species}_{\text{Grasshopper Sparrow}} - 0.327407 \cdot \text{Species}_{\text{Henslow's Sparrow}} - 0.655641 \cdot \text{Species}_{\text{Savannah Sparrow}} + 0.180147 \cdot \text{Species}_{\text{Vesper Sparrow}} + 0.961508 \cdot \text{Species}_{\text{Western Meadowlark}} + 0.000686 \cdot \text{Initiation\_Date}\]
where \(p\) is the probability that the event is true.
One way to evaluate the goodness of fit for our models is to assess the difference between our model and the null model (which summarizes the data with a single parameter: the mean of𝑌) Y). This null model essentially explains nothing. To do so we calculate a parameter, \[{pseudo}-R^2\] by examining the distance between the deviance of the null model and the residual deviance of our model.
# Estimate of deviance explained
(mod1$null.deviance-mod1$deviance)/mod1$null.deviance[1] 0.0293313# Some others estimates of deviance explained - package 'rcompanion'
nagelkerke(mod1)$Models
Model: "glm, Nest_Fate ~ Species + Initiation_Date, binomial(link = \"logit\"), data_Illinois"
Null: "glm, Nest_Fate ~ 1, binomial(link = \"logit\"), data_Illinois"
$Pseudo.R.squared.for.model.vs.null
Pseudo.R.squared
McFadden 0.0293313
Cox and Snell (ML) 0.0358486
Nagelkerke (Cragg and Uhler) 0.0503523
$Likelihood.ratio.test
Df.diff LogLik.diff Chisq p.value
-8 -19.586 39.172 4.5671e-06
$Number.of.observations
Model: 1073
Null: 1073
$Messages
[1] "Note: For models fit with REML, these statistics are based on refitting with ML"
$Warnings
[1] "None"According to this table, the estimate of the explained deviance is 2.9% which is very low.
We make sure that there is no influential individuals.
par(mfrow = c(1, 1))
plot(cooks.distance(mod1), type = "h", ylim = c(0, 1))
abline(h = 1, col = 2,lwd = 3)
The graph does not show any influential individuals.
Here we want to assess if our model is able to well-classify nest based on our data.
# We could do a simulation
N <- nrow(data_Illinois)
Pi <- fitted(mod1)
data_Illinois$Ysim <- rbinom(N, size = 1, Pi)
# Classification table
Z <- table(data_Illinois$Nest_Fate, data_Illinois$Ysim) / N
rownames(Z) <- c("Observed 0", "Observed 1")
colnames(Z) <- c("Predicted 0", "Predicted 1")
Z
Predicted 0 Predicted 1
Observed 0 0.4846226 0.2013048
Observed 1 0.2013048 0.1127679#Correctly classified:
sum(diag(Z))[1] 0.5973905# And repeat this 1000 times, store the results and calculate an average classification table
Pi <- fitted(mod1)
N <- nrow(data_Illinois)
NSim <- 1000
diagZ<- matrix(nrow = N, ncol = NSim)
for (i in 1:NSim) {
Ysim <- rbinom(N, size = 1, Pi)
Z<- table(data_Illinois$Nest_Fate, Ysim) / N
diagZ[,i]<-sum(diag(Z))
}
#Average rate of individuals well-classified by the model
boxplot(diagZ[2,], col='dodgerblue3',ylab='#Rate of nest fate well-classified')
mean(diagZ[2,])[1] 0.5850457Here we have 58% of good predictions, which is somewhat below the common threshold of 70% for a model to be considered good. This suggests that the model may need improvement.
This result is not surprising given our initial data. Because they are from different studies some variables barely contains some species or years, etc… This could explain why our model is not suitable.
data$Nest_Fate <- as.factor(data$Nest_Fate)
data$County <- as.factor(data$County)
data$Habitat <- as.factor(data$Habitat)
data$Year <- as.factor(data$Year)We want to study the impact of four qualitative variables, the habitat, the county, the species and the year over the number of young hatched in the nest “Number_Fledged”. It is a counting variable, which imply that it follows a Poisson distribution. A negative binomial distribution could be used but is preferred when the count values are high (which is not really the case here since the highest value is of 6)
A Poisson law is used to describe rare, discrete and independent events. Hence the variable \(Y\) that follows a Poisson distribution of parameter \(\lambda\) is written: \[Pr(Y=y)=\frac{e^{-\lambda}.\lambda^y}{y!}\] where \(y\) represent the value of the count (here \(y\) ∈ [0-6]) and \(\lambda\) is the mean value and variance of the Poisson distribution (because in a Poisson law E(\(y\))= Var(\(y\))=\(\lambda\)).
Before any analysis, it is important to have a look at the data.
par(mfrow=c(2,2))
# Boxplot
boxplot(data$Number_Fledged,col='dodgerblue3',ylab='Number of young in nest')
# Cleveland plot
dotchart(data$Number_Fledged,pch=16,col='dodgerblue3',xlab='Number of young in nest')
# Histogram
hist(data$Number_Fledged,col='dodgerblue3',xlab="Number of young in nest",main="")
# Quantile-Quantile plot
qqnorm(data$Number_Fledged,pch=16,col='dodgerblue3',xlab='')
qqline(data$Number_Fledged,col='red',lwd=2)
There aren’t any outlayer values. There are a lot of value at 0. Maybe we can study only the number of young when there are some. It could be a normal distribution.
# Get rid of the lines where the Number of young individuals in the nest is equal to 0
data_filtered <- subset(data, Number_Fledged != 0)par(mfrow=c(2,2))
# Boxplot
boxplot(data_filtered$Number_Fledged,col='dodgerblue3',ylab='Number of young in nest')
# Cleveland plot
dotchart(data_filtered$Number_Fledged,pch=16,col='dodgerblue3',xlab='Number of young in nest')
# Histogram
hist(data_filtered$Number_Fledged,col='dodgerblue3',xlab="Number of young in nest",main="")
# Quantile-Quantile plot
qqnorm(data_filtered$Number_Fledged,pch=16,col='dodgerblue3',xlab='')
qqline(data_filtered$Number_Fledged,col='red',lwd=2)
Now we have a better view of the data.
# Factor County
summary(data_filtered$County) Carroll Carroll/Whiteside Dane Grant
5 1 224 20
Green Grundy Iowa Jo_Daviess
62 11 260 127
Lafayette Lee Lee/Ogle Monroe
165 6 85 103
Rock Will
2 102 # Factor Habitat
summary(data_filtered$Habitat)Cool-season_Grassland Pasture Prairie
273 537 180
Warm-season_Grassland
183 # Factor Species
summary(data_filtered$Species) Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
184 163 233 280
Henslow's_Sparrow Savannah_Sparrow Vesper_Sparrow Western_Meadowlark
28 196 60 29 # Factor Year
summary(data_filtered$Year)1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
35 4 13 13 73 45 120 137 98 131 66 75 20 44 27 57
2007 2008 2009 2010 2011
46 73 24 50 22 Problem: there aren’t the same number of observations in each level of each factors. Suggestion: normalize by the number of observation for each level.

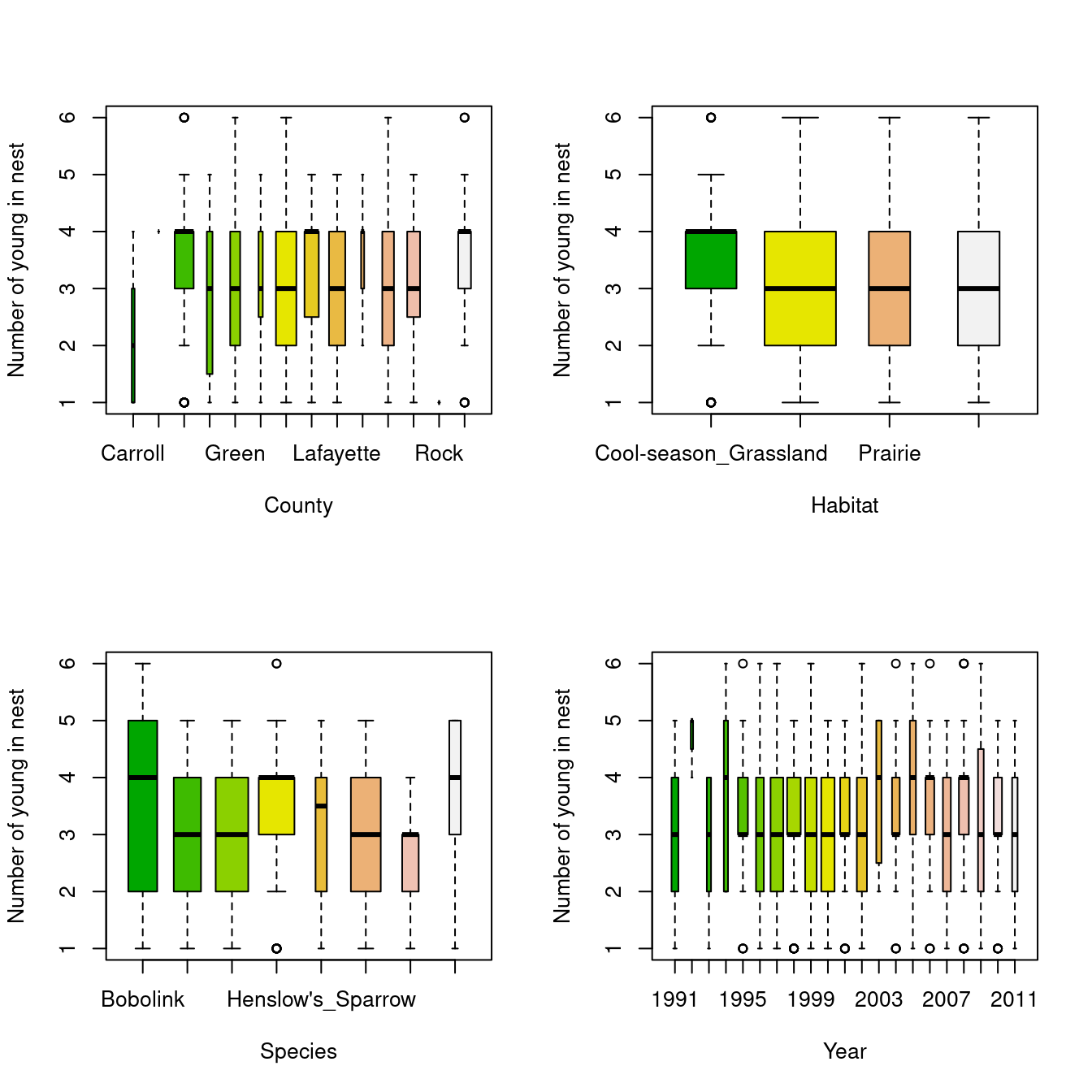

par(mfrow=c(2,2))
# County
boxplot(Number_Fledged~County, varwidth = TRUE, ylab = "Number of young in nest", xlab = "County", col=terrain.colors(14), main = "", data=data_filtered)
# Habitat
boxplot(Number_Fledged~Habitat, varwidth = TRUE, ylab = "Number of young in nest", xlab = "Habitat", col=terrain.colors(4), main = "",data=data_filtered)
# Species
boxplot(Number_Fledged~Species, varwidth = TRUE, ylab = "Number of young in nest", xlab = "Species", col=terrain.colors(8), main = "",data=data_filtered)
# Year
boxplot(Number_Fledged~Year, varwidth = TRUE, ylab = "Number of young in nest", xlab = "Year", col=terrain.colors(21), main = "",data=data_filtered)
It’s not easy to see if the variables have an impact because some of them have a lot of levels, but it is possible to see small differences between them. The analysis will tell us if they really got an impact over the number of young in the nest.
There are a lot of levels so it’s hard to plot the interactions. We will see if there are some in the analysis.
par(mfrow=c(1,3))
# Interactions between County & Habitat
plot(Number_Fledged~County,type='n',ylab = "Number of young in nest",xlab="County", data=data_filtered)
points(Number_Fledged[Habitat=="Pasture"]~County[Habitat=="Pasture"],pch=16,cex=2,col='#000099', data=data_filtered)
points(Number_Fledged[Habitat=="Cool-season Grassland"]~County[Habitat=="Cool-season Grassland"],pch=16,cex=2,col='green', data=data_filtered)
points(Number_Fledged[Habitat=="Prairie"]~County[Habitat=="Prairie"],pch=16,cex=2,col='red', data=data_filtered)
points(Number_Fledged[Habitat=="Warm-season Grassland"]~County[Habitat=="Warm-season Grassland"],pch=16,cex=2,col='yellow', data=data_filtered)
Here the example between county and habitat doesn’t show a clear pattern. It’s hard to conclude on the interaction aspect.
The following code only presents the contingency table between the variables Habitat and Species for convenience, but the same table has to be done with every couple of 4 variables.
contingency_table<-table(data_filtered$Habitat,data_filtered$Species)
print(contingency_table)
Bobolink Dickcissel Eastern_Meadowlark
Cool-season_Grassland 89 51 95
Pasture 53 26 86
Prairie 2 21 32
Warm-season_Grassland 40 65 20
Grasshopper_Sparrow Henslow's_Sparrow Savannah_Sparrow
Cool-season_Grassland 13 21 4
Pasture 141 0 189
Prairie 80 1 0
Warm-season_Grassland 46 6 3
Vesper_Sparrow Western_Meadowlark
Cool-season_Grassland 0 0
Pasture 13 29
Prairie 44 0
Warm-season_Grassland 3 0chi2_test<-chisq.test(contingency_table)Warning in chisq.test(contingency_table): Chi-squared approximation may be
incorrectprint(chi2_test)
Pearson's Chi-squared test
data: contingency_table
X-squared = 748.71, df = 21, p-value < 2.2e-16print(chi2_test$expected)
Bobolink Dickcissel Eastern_Meadowlark
Cool-season_Grassland 42.82353 37.93606 54.22762
Pasture 84.23529 74.62148 106.66752
Prairie 28.23529 25.01279 35.75448
Warm-season_Grassland 28.70588 25.42967 36.35038
Grasshopper_Sparrow Henslow's_Sparrow Savannah_Sparrow
Cool-season_Grassland 65.16624 6.516624 45.61637
Pasture 128.18414 12.818414 89.72890
Prairie 42.96675 4.296675 30.07673
Warm-season_Grassland 43.68286 4.368286 30.57801
Vesper_Sparrow Western_Meadowlark
Cool-season_Grassland 13.964194 6.749361
Pasture 27.468031 13.276215
Prairie 9.207161 4.450128
Warm-season_Grassland 9.360614 4.524297Problem : for most of the variables the chi² test can’t be done because of the low number of values in each group. The only one that fulfill the conditions and therefore can be made is between Habitat and Species but the result shows that the variables are correlated.
Now that we have a better idea of the data implied in this study, we can begin the statistical analysis.
Because our response variable follows a poisson distribution we use a link function : the log function.
# Model formulation
mod1<-glm(Number_Fledged~ County
+ Species
+ Habitat
+ Year
,data=data_filtered
,family=poisson(link="log"))
# Variable type : poisson. Link fonction : log
# Then we check for significance
drop1(mod1,test="Chi")Single term deletions
Model:
Number_Fledged ~ County + Species + Habitat + Year
Df Deviance AIC LRT Pr(>Chi)
<none> 541.13 4125.3
County 13 557.02 4115.2 15.8822 0.255551
Species 7 560.94 4131.1 19.8043 0.006008 **
Habitat 3 541.44 4119.6 0.3096 0.958219
Year 20 551.54 4095.7 10.4077 0.960163
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1We decide to remove the less significative variable : here it’s Year.
# Model formulation
mod1<-glm(Number_Fledged~ County
+ Species
+ Habitat
,data=data_filtered
,family=poisson(link="log"))
#type de la variable : poisson et fonction de lien de type log
# Then we check for significance
drop1(mod1,test="Chi")Single term deletions
Model:
Number_Fledged ~ County + Species + Habitat
Df Deviance AIC LRT Pr(>Chi)
<none> 551.54 4095.7
County 13 569.19 4087.3 17.6441 0.17151
Species 7 574.48 4104.6 22.9344 0.00175 **
Habitat 3 551.76 4089.9 0.2194 0.97439
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1Now the less significative is Habitat
# Model formulation
mod1<-glm(Number_Fledged~ County
+ Species
,data=data_filtered
,family=poisson(link="log"))
#type de la variable : poisson et fonction de lien de type log
# Then we check for significance
drop1(mod1,test="Chi")Single term deletions
Model:
Number_Fledged ~ County + Species
Df Deviance AIC LRT Pr(>Chi)
<none> 551.76 4089.9
County 13 572.82 4085.0 21.056 0.071837 .
Species 7 574.68 4098.8 22.914 0.001764 **
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1County is still not significative so we have to remove it.
# Model formulation
mod1<-glm(Number_Fledged~ Species
,data=data_filtered
,family=poisson(link="log"))
#type de la variable : poisson et fonction de lien de type log
# Then we check for significance
drop1(mod1,test="Chi")Single term deletions
Model:
Number_Fledged ~ Species
Df Deviance AIC LRT Pr(>Chi)
<none> 572.82 4085.0
Species 7 599.76 4097.9 26.938 0.000342 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1summary(mod1)
Call:
glm(formula = Number_Fledged ~ Species, family = poisson(link = "log"),
data = data_filtered)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) 1.29234 0.03863 33.452 < 2e-16 ***
SpeciesDickcissel -0.18558 0.05934 -3.128 0.001762 **
SpeciesEastern_Meadowlark -0.14760 0.05347 -2.761 0.005769 **
SpeciesGrasshopper_Sparrow -0.05604 0.05030 -1.114 0.265207
SpeciesHenslow's_Sparrow -0.18190 0.11514 -1.580 0.114157
SpeciesSavannah_Sparrow -0.19203 0.05648 -3.400 0.000674 ***
SpeciesVesper_Sparrow -0.32409 0.08844 -3.665 0.000248 ***
SpeciesWestern_Meadowlark -0.04452 0.10674 -0.417 0.676633
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for poisson family taken to be 1)
Null deviance: 599.76 on 1172 degrees of freedom
Residual deviance: 572.82 on 1165 degrees of freedom
AIC: 4085
Number of Fisher Scoring iterations: 4We have the final model with only the Species.
The equation of the model is the following:
\[ Number_Fledged = 1.29^{***} + (Species{Bobolink} = 0 ;\:Species{Dickcissel} = -0.18^{**} ; \:Species{Eastern Meadowlark} = -0.14^{**} ; \:Species{Grasshopper Sparrow} = -0.05 ; \:Species{Henslow's Sparrow} = -0.18 ; \:Species{Savannah Sparrow = -0.19^{***} ; \:Species{Vesper Sparrow = -0.32^{***} ; \:Species{Western Meadowlark} = -0.04) \]
According to the model’s summary, the null deviance is of 599.76 and residual deviance is of 572.82. In order to estimate the explained deviance, one can use the following formula:
\[Pseudo\:R^2=100\:.\:\frac{Null\:Deviance- Residual\:Deviance}{Null\:Deviance}\]
# Estimate of deviance explained
(mod1$null.deviance-mod1$deviance)/mod1$null.deviance[1] 0.04491502This is very very bad… The variable species doesn’t seem to explain a lot of the variation in the number of young individuals in the nest.
The model that we have done is a generalized linear model so there aren’t residual normality or homogeneity. However, it is important to check the independence of residuals.
First of all, in situations where a counting model is used, such as when following a Poisson distribution, the overdispersion has to be checked. It can be done with the following code. If the result is over 1, there are overdispersion and the model should be reconsidered.
# Scale parameter calculation
E1 <- resid(mod1, type = "pearson") # (Y - mu) / sqrt(mu)
N <- nrow(data_filtered)
p <- length(coef(mod1))
sum(E1^2) / (N - p)[1] 0.4439871The value is of 0.44 so it’s okay, the residuals aren’t overdispersed.
We can also check for the most influential individuals:
par(mfrow = c(1, 1))
plot(cooks.distance(mod1), type = "h", ylim = c(0, 1))
abline(h = 1, col = 2,lwd = 3)
There aren’t very influential individuals which can be logical because of the high number of them and the low impact of species over the number of young individuals in the nest.
The species of the birds has an impact over the number of young individuals in the nest, but it is clearly not the only variable that explain the variation of the response (only 4% are due to the species).
Analysis of variance (ANOVA) is one of the most widely used statistical methods in various disciplines. It allows to model the relationship between a quantitative dependent variable \(Y\) according to the different modalities of one or more qualitative explanatory variables \(Xs\).
We will perform an ANOVA to see the effect of qualitatives variables (state, habitat, species, year) on the quantitative variable Initiation_Date in the Bird_dataset.csv dataset.
We need to check the type of the variables :
# Dataset : variables as factors
data$State<-as.factor(data$State)
data$Habitat<-as.factor(data$Habitat)
data$Species<-as.factor(data$Species)
data$Year<-as.factor(data$Year)
str(data)'data.frame': 3257 obs. of 10 variables:
$ Nest_ID : Factor w/ 3256 levels "1000JAAP","1005JAAP",..: 974 977 979 980 981 982 983 984 985 986 ...
$ State : Factor w/ 2 levels "Illinois","Wisconsin": 1 1 1 1 1 1 1 1 1 1 ...
$ County : Factor w/ 14 levels "Carroll","Carroll/Whiteside",..: 14 14 14 14 14 14 14 14 14 14 ...
$ Habitat : Factor w/ 4 levels "Cool-season_Grassland",..: 2 2 2 2 2 2 2 2 2 2 ...
$ Species : Factor w/ 8 levels "Bobolink","Dickcissel",..: 1 1 1 1 1 1 1 1 1 1 ...
$ Year : Factor w/ 21 levels "1991","1992",..: 5 5 5 5 5 5 5 5 5 5 ...
$ Nest_Fate : Factor w/ 2 levels "0","1": 1 1 2 1 1 1 2 2 1 1 ...
$ Initiation_Date: int 58 52 51 60 53 65 52 47 50 65 ...
$ Number_Fledged : int 0 0 6 0 0 0 5 4 0 0 ...
$ Nest_End_Date : int 78 74 75 75 69 78 81 72 63 81 ...# Checking for missing data
colSums(is.na(data)) Nest_ID State County Habitat Species
0 0 0 0 0
Year Nest_Fate Initiation_Date Number_Fledged Nest_End_Date
0 0 0 0 0 There is no missing data here.
Before any modeling, we must explore the data in order to avoid possible errors. Below we present the list of steps to follow before proceeding to the modeling:
1: Check for the presence of outliers in \(Y\) and the distribution of the values of \(Y\)
2: If \(X\) is a quantitative explanatory variable, check for the presence of outliers and the distribution of the values of \(X\) OR/AND If \(X\) is a qualitative explanatory variable, analyze the number of modalities and the number of individuals per modality
3: Analyze the potential relationship between \(Y\) and the \(X_{s}\)
4: Check for the presence of possible interactions between the \(X_{s}\)
par(mfrow=c(2,2))
# Boxplot
boxplot(data$Initiation_Date,col='dodgerblue3',ylab='Initiation date')
# Cleveland plot
dotchart(data$Initiation_Date,pch=16,col='dodgerblue3',xlab='Initiation date')
# Histogram
hist(data$Initiation_Date,col='dodgerblue3',xlab="Initiation date",main="")
# Quantile-Quantile plot
qqnorm(data$Initiation_Date,pch=16,col='dodgerblue3',xlab='')
qqline(data$Initiation_Date,col='red',lwd=2)
The different graphs show us no outliers for Initiation_Date. In addition, our Y variable seems to follow a Normal Distribution.
The four \(Xs\) are factors. We can analyze the number of modalities and the number of individuals per modality.
# Factor State
summary(data$State) Illinois Wisconsin
1073 2184 # Factor Habitat
summary(data$Habitat)Cool-season_Grassland Pasture Prairie
677 1683 496
Warm-season_Grassland
401 # Factor Species
summary(data$Species) Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
390 470 726 693
Henslow's_Sparrow Savannah_Sparrow Vesper_Sparrow Western_Meadowlark
72 664 174 68 # Factor Year
summary(data$Year)1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
68 27 24 26 206 261 330 321 272 448 285 181 56 102 55 91
2007 2008 2009 2010 2011
139 180 67 73 45 Factor State: The experimental design is not balanced (1071 and 2150 data), but the analysis can be performed because there are enough data in each modality (> 10).
Factor Habitat: The experimental design is not balanced (from 392 to 1683 data), but the analysis can be performed because there are enough data in each modality (> 10).
Factor Species: The experimental design is not balanced. Several species have less than 10 data per modality. It will therefore be necessary to remove these data before continuing the analysis
Factor Year: The experimental design is not balanced (from 24 to 448 data), but the analysis can be performed because there are enough data in each modality (> 10 : threshold from which we consider that carrying out statistical analyses makes sense. You can choose your own threshold).
# Count the number of occurrences for each modality in data$Species
species_count <- table(data$Species)
# Keep only terms with 10 or more occurrences
data <- data %>% filter(Species %in% names(species_count[species_count >= 10]))
# Show filtered data
head(data) Nest_ID State County Habitat Species Year Nest_Fate Initiation_Date
1 745JAAP Illinois Will Pasture Bobolink 1995 0 58
2 748JAAP Illinois Will Pasture Bobolink 1995 0 52
3 753JAAP Illinois Will Pasture Bobolink 1995 1 51
4 754JAAP Illinois Will Pasture Bobolink 1995 0 60
5 755JAAP Illinois Will Pasture Bobolink 1995 0 53
6 758JAAP Illinois Will Pasture Bobolink 1995 0 65
Number_Fledged Nest_End_Date
1 0 78
2 0 74
3 6 75
4 0 75
5 0 69
6 0 78summary(data$Species) Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
390 470 726 693
Henslow's_Sparrow Savannah_Sparrow Vesper_Sparrow Western_Meadowlark
72 664 174 68 We can graphically analyze the possible relationships between Y and X. This graphical analysis of the relationships between Y and X does not allow us to predict the significance of the relationship. Statistical modeling remains the only available means to identify whether a relationship exists or not.
# Boxplot
par(mfrow=c(1,2))
boxplot(data$Initiation_Date~data$State, varwidth = TRUE, ylab = "Initiation date", xlab = "State", col='darkgrey', main = "")
boxplot(data$Initiation_Date~data$Habitat, varwidth = TRUE, ylab = "Initiation date", xlab = "Habitat", col='darkgrey', main = "")
boxplot(data$Initiation_Date~data$Species, varwidth = TRUE, ylab = "Initiation date", xlab = "Species", col='darkgrey', main = "")
boxplot(data$Initiation_Date~data$Year, varwidth = TRUE, ylab = "Initiation date", xlab = "Year", col='darkgrey', main = "")
From the first visualizations, we could make the hypothesis that Year and Species influence Initiation_Date.
The interaction between two factors can only be tested if the factors are crossed (all the modalities of one factor are represented in all the modalities of the other factor and vice versa = a complete factorial design). To estimate the presence of interactive effects, we will develop a graphical approach.
# Interaction table
table(data$State,data$Habitat)
Cool-season_Grassland Pasture Prairie Warm-season_Grassland
Illinois 242 537 137 157
Wisconsin 435 1146 359 244table(data$State,data$Species)
Bobolink Dickcissel Eastern_Meadowlark Grasshopper_Sparrow
Illinois 62 314 229 350
Wisconsin 328 156 497 343
Henslow's_Sparrow Savannah_Sparrow Vesper_Sparrow
Illinois 5 13 54
Wisconsin 67 651 120
Western_Meadowlark
Illinois 46
Wisconsin 22table(data$State,data$Year)
1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003
Illinois 0 0 0 0 166 261 330 166 0 0 0 0 0
Wisconsin 68 27 24 26 40 0 0 155 272 448 285 181 56
2004 2005 2006 2007 2008 2009 2010 2011
Illinois 0 0 0 52 60 38 0 0
Wisconsin 102 55 91 87 120 29 73 45table(data$Habitat,data$Species)
Bobolink Dickcissel Eastern_Meadowlark
Cool-season_Grassland 157 163 260
Pasture 166 85 322
Prairie 9 69 95
Warm-season_Grassland 58 153 49
Grasshopper_Sparrow Henslow's_Sparrow Savannah_Sparrow
Cool-season_Grassland 32 53 10
Pasture 360 0 644
Prairie 200 1 2
Warm-season_Grassland 101 18 8
Vesper_Sparrow Western_Meadowlark
Cool-season_Grassland 2 0
Pasture 40 66
Prairie 120 0
Warm-season_Grassland 12 2table(data$Habitat,data$Year)
1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Cool-season_Grassland 1 0 0 0 40 79 75 7 0 0 34
Pasture 0 0 15 26 92 106 226 272 272 411 158
Prairie 11 2 0 0 41 29 9 28 0 32 92
Warm-season_Grassland 56 25 9 0 33 47 20 14 0 5 1
2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Cool-season_Grassland 17 18 25 48 88 109 132 4 0 0
Pasture 11 19 33 0 2 12 17 7 1 3
Prairie 151 19 44 0 1 11 12 11 0 3
Warm-season_Grassland 2 0 0 7 0 7 19 45 72 39table(data$Species,data$Year)
1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001
Bobolink 0 0 0 5 20 22 20 29 37 34 20
Dickcissel 68 27 24 0 50 60 83 27 0 7 5
Eastern_Meadowlark 0 0 0 3 51 119 41 35 47 60 70
Grasshopper_Sparrow 0 0 0 0 45 50 128 114 21 66 59
Henslow's_Sparrow 0 0 0 0 4 1 0 0 0 0 4
Savannah_Sparrow 0 0 0 14 27 3 3 81 161 262 91
Vesper_Sparrow 0 0 0 2 4 6 28 13 0 16 36
Western_Meadowlark 0 0 0 2 5 0 27 22 6 3 0
2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Bobolink 4 10 6 24 28 32 46 9 29 15
Dickcissel 11 0 0 0 3 36 33 29 1 6
Eastern_Meadowlark 36 21 36 18 43 49 62 5 21 9
Grasshopper_Sparrow 74 15 38 5 3 11 28 15 10 11
Henslow's_Sparrow 2 1 7 6 11 11 7 4 10 4
Savannah_Sparrow 0 7 4 2 3 0 2 2 2 0
Vesper_Sparrow 54 2 10 0 0 0 2 1 0 0
Western_Meadowlark 0 0 1 0 0 0 0 2 0 0Subsequently, we will not analyze the interactions between the factors since there is no interaction between the Xs variables.
# Model formulation
mod1<-lm(Initiation_Date~State+Habitat+Species+Year,data=data)
# Then we check for significance
drop1(mod1,test="F")Single term deletions
Model:
Initiation_Date ~ State + Habitat + Species + Year
Df Sum of Sq RSS AIC F value Pr(>F)
<none> 976530 18639
State 1 2745 979275 18646 9.0652 0.002625 **
Habitat 3 707 977238 18636 0.7788 0.505682
Species 7 103831 1080362 18954 48.9863 < 2.2e-16 ***
Year 20 38882 1015412 18726 6.4204 < 2.2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1Since the Habitat factor is not significant, we can remove it in our search for the candidate model.
# Model formulation
mod2<-lm(Initiation_Date~State+Species+Year,data=data)
# Then we check for significance
drop1(mod2,test="F")Single term deletions
Model:
Initiation_Date ~ State + Species + Year
Df Sum of Sq RSS AIC F value Pr(>F)
<none> 977238 18636
State 1 2704 979942 18643 8.9334 0.002821 **
Species 7 106384 1083622 18958 50.2010 < 2.2e-16 ***
Year 20 50931 1028169 18761 8.4118 < 2.2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1All factors are significant. So we have our candidate model.
To understand how factors influence Initiation_Date, we need to analyze the coefficients of the model.
# Coefficients of the model
summary(mod2)
Call:
lm(formula = Initiation_Date ~ State + Species + Year, data = data)
Residuals:
Min 1Q Median 3Q Max
-44.632 -12.483 -0.898 12.648 47.293
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 75.2202 3.1666 23.754 < 2e-16 ***
StateWisconsin -4.1385 1.3846 -2.989 0.002821 **
SpeciesDickcissel 22.1389 1.4608 15.155 < 2e-16 ***
SpeciesEastern_Meadowlark 0.5651 1.1230 0.503 0.614845
SpeciesGrasshopper_Sparrow 10.9373 1.2108 9.033 < 2e-16 ***
SpeciesHenslow's_Sparrow 7.1495 2.2608 3.162 0.001580 **
SpeciesSavannah_Sparrow 2.0384 1.2402 1.644 0.100344
SpeciesVesper_Sparrow 6.5509 1.7251 3.797 0.000149 ***
SpeciesWestern_Meadowlark 4.8149 2.3779 2.025 0.042969 *
Year1992 -8.1836 3.9578 -2.068 0.038750 *
Year1993 -9.3039 4.1311 -2.252 0.024379 *
Year1994 -10.9649 4.2064 -2.607 0.009184 **
Year1995 -11.7072 2.9317 -3.993 6.66e-05 ***
Year1996 -10.8870 3.0252 -3.599 0.000324 ***
Year1997 -10.0784 2.9379 -3.430 0.000610 ***
Year1998 -9.2642 2.7433 -3.377 0.000742 ***
Year1999 -6.2924 2.6793 -2.348 0.018910 *
Year2000 -4.6532 2.5812 -1.803 0.071518 .
Year2001 -6.1430 2.6142 -2.350 0.018840 *
Year2002 -10.5584 2.7096 -3.897 9.95e-05 ***
Year2003 -12.7861 3.3400 -3.828 0.000132 ***
Year2004 -18.2139 2.9473 -6.180 7.22e-10 ***
Year2005 -14.2968 3.3841 -4.225 2.46e-05 ***
Year2006 -18.2607 3.0289 -6.029 1.84e-09 ***
Year2007 -14.3252 2.8354 -5.052 4.61e-07 ***
Year2008 -17.6839 2.7534 -6.422 1.54e-10 ***
Year2009 -19.0075 3.2178 -5.907 3.85e-09 ***
Year2010 -16.1358 3.1693 -5.091 3.76e-07 ***
Year2011 -13.8112 3.4968 -3.950 7.99e-05 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Residual standard error: 17.4 on 3228 degrees of freedom
Multiple R-squared: 0.2269, Adjusted R-squared: 0.2202
F-statistic: 33.84 on 28 and 3228 DF, p-value: < 2.2e-16# From this listing, you read the coefficients table hereafter :
# Coefficients:
# Estimate Std. Error t value Pr(>|t|)
# (Intercept) 75.7832 3.1611 23.974 < 2e-16 ***
# StateWisconsin -4.4838 1.3892 -3.228 0.001261 **
# SpeciesDickcissel 21.9212 1.4579 15.036 < 2e-16 ***
# SpeciesEastern Meadowlark 0.5278 1.1198 0.471 0.637432
# SpeciesGrasshopper Sparrow 10.6652 1.2095 8.818 < 2e-16 ***
# SpeciesSavannah Sparrow 1.9590 1.2370 1.584 0.113382
# SpeciesVesper Sparrow 6.2687 1.7225 3.639 0.000278 ***
# SpeciesWestern Meadowlark 4.5978 2.3695 1.940 0.052424 .
# Year1992 -8.1836 3.9411 -2.076 0.037930 *
# Year1993 -9.3039 4.1136 -2.262 0.023780 *
# Year1994 -11.0971 4.1890 -2.649 0.008111 **
# Year1995 -11.7709 2.9221 -4.028 5.75e-05 ***
# Year1996 -11.2748 3.0178 -3.736 0.000190 ***
# Year1997 -10.4340 2.9302 -3.561 0.000375 ***
# Year1998 -9.4950 2.7335 -3.474 0.000520 ***
# Year1999 -6.4308 2.6686 -2.410 0.016018 *
# Year2000 -4.7644 2.5708 -1.853 0.063934 .
# Year2001 -6.3518 2.6071 -2.436 0.014893 *
# Year2002 -10.3377 2.7027 -3.825 0.000133 ***
# Year2003 -12.4141 3.3412 -3.716 0.000206 ***
# Year2004 -17.6615 2.9707 -5.945 3.06e-09 ***
# Year2005 -14.4370 3.4662 -4.165 3.20e-05 ***
# Year2006 -20.7535 3.0848 -6.728 2.04e-11 ***
# Year2007 -15.3033 2.8578 -5.355 9.17e-08 ***
# Year2008 -17.9192 2.7567 -6.500 9.28e-11 ***
# Year2009 -19.0311 3.2531 -5.850 5.41e-09 ***
# Year2010 -15.0863 3.2508 -4.641 3.61e-06 ***
# Year2011 -13.2651 3.5681 -3.718 0.000205 ***We can determine the portion of variance of \(Y\) explained by our model.
# R² of the model
summary(mod2)$adj.r.squared[1] 0.2201967We obtain the adjusted R² = 0.22. This means that approximately 22% of the variance of Initiation_Date is explained by our modeling.
The assumptions of ANOVA are the same as for any general linear model, namely independence, normality of residuals and homogeneity of variances. In addition, one must check the presence of influential statistical units (i.e. observations having a significant contribution to the construction of the model).
par(mfrow=c(1,2))
# Histogram
hist(mod2$residuals,col='dodgerblue3',xlab="residuals",main="Check Normality")
# Quantile-Quantile plot
qqnorm(mod2$residuals,pch=16,col='dodgerblue3',xlab='')
qqline(mod2$residuals,col='red',lwd=2)
The residuals seem to follow a Normal Distribution.
The assumption of homogeneity of variance is the fact that the variation of the residuals is approximately equal over the entire range of explanatory variables, should be verified by plotting the residuals at the estimated values and the residuals at the values of the significant variables. The residuals should show no trend.
par(mfrow=c(2,2))
# residuals vs fitted
plot(residuals(mod1)~fitted(mod1)
, col='dodgerblue3'
, pch=16)
# residuals against state factor
boxplot(residuals(mod2)~ data$State,
varwidth = TRUE,
col='darkgrey',
ylab = "Residuals",
xlab = "States",
main = "")
# residuals against species factor
boxplot(residuals(mod2)~ data$Species,
varwidth = TRUE,
col='brown',
ylab = "Residuals",
xlab = "Species",
main = "")
# residuals against year factor
boxplot(residuals(mod2)~ data$Year,
varwidth = TRUE,
col='brown',
ylab = "Residuals",
xlab = "Years",
main = "")
We do not observe any trend. Therefore the hypothesis of homogeneity of variance is verified.
ANOVA (like any other general linear model) assumes that all statistical units (and therefore residuals) are independent of each other. This issue must be taken into account at the research design stage. Given the approach here, the statistical individuals are independent. This assumption is verified.
par(mfrow = c(1, 1))
plot(cooks.distance(mod2), type = "h", ylim = c(0, 1))
abline(h = 1, col = 2,lwd = 3)
There is no influential individual.
All conditions being verified, our modeling can be validated.
The explanatory variables retained in our model are “State”, “Species” and “Year”.
The equation of our model is:
\[ \text{Y} = 75.7832 - 4.4838 \cdot \text{State}_{\text{Wisconsin}} + 21.9212 \cdot \text{Species}_{\text{Dickcissel}} + 0.5278 \cdot \text{Species}_{\text{Eastern Meadowlark}} + 10.6652 \cdot \text{Species}_{\text{Grasshopper Sparrow}} + 1.9590 \cdot \text{Species}_{\text{Savannah Sparrow}} + 6.2687 \cdot \text{Species}_{\text{Vesper Sparrow}} + 4.5978 \cdot \text{Species}_{\text{Western Meadowlark}} - 8.1836 \cdot \text{Year}_{1992} - 9.3039 \cdot \text{Year}_{1993} - 11.0971 \cdot \text{Year}_{1994} - 11.7709 \cdot \text{Year}_{1995} - 11.2748 \cdot \text{Year}_{1996} - 10.4340 \cdot \text{Year}_{1997} - 9.4950 \cdot \text{Year}_{1998} - 6.4308 \cdot \text{Year}_{1999} - 4.7644 \cdot \text{Year}_{2000} - 6.3518 \cdot \text{Year}_{2001} - 10.3377 \cdot \text{Year}_{2002} - 12.4141 \cdot \text{Year}_{2003} - 17.6615 \cdot \text{Year}_{2004} - 14.4370 \cdot \text{Year}_{2005} - 20.7535 \cdot \text{Year}_{2006} - 15.3033 \cdot \text{Year}_{2007} - 17.9192 \cdot \text{Year}_{2008} - 19.0311 \cdot \text{Year}_{2009} - 15.0863 \cdot \text{Year}_{2010} - 13.2651 \cdot \text{Year}_{2011} \]
In this equation each variable takes the value 1 if the corresponding condition is true and 0 otherwise.
But despite all the conditions of the model being validated, this model only explains 22% (R² = 0.22) of our variable Y (Initiation_Date).
Here, we perform an FAMD on the initial dataframe. The FAMD is used for tables with qualitative and quantitative variables. The ID are removed because of their uselessness.
data_famd <- data
### Conversion of the Year into factor
data_famd$Year <- as.factor(data_famd$Year)
### Removing of ID
data_famd <- data_famd |>
dplyr::select(-Nest_ID)We can perform the famd (see (fig?)-)
famd <- FAMD(base = data_famd, graph = FALSE)First, let’s see the summary :
summary(famd)
Call:
FAMD(base = data_famd, graph = FALSE)
Eigenvalues
Dim.1 Dim.2 Dim.3 Dim.4 Dim.5
Variance 3.416 2.831 2.644 2.327 2.148
% of var. 7.116 5.897 5.509 4.849 4.475
Cumulative % of var. 7.116 13.013 18.522 23.371 27.846
Individuals (the 10 first)
Dist Dim.1 ctr cos2 Dim.2 ctr cos2
1 | 5.833 | 1.039 0.010 0.032 | -0.144 0.000 0.001 |
2 | 5.890 | 0.893 0.007 0.023 | -0.069 0.000 0.000 |
3 | 6.588 | 0.807 0.006 0.015 | 1.015 0.011 0.024 |
4 | 5.839 | 1.024 0.009 0.031 | -0.144 0.000 0.001 |
5 | 5.919 | 0.833 0.006 0.020 | -0.049 0.000 0.000 |
6 | 5.810 | 1.141 0.012 0.039 | -0.204 0.000 0.001 |
7 | 6.330 | 0.921 0.008 0.021 | 0.856 0.008 0.018 |
8 | 6.231 | 0.724 0.005 0.014 | 0.834 0.008 0.018 |
9 | 5.998 | 0.700 0.004 0.014 | 0.012 0.000 0.000 |
10 | 5.799 | 1.186 0.013 0.042 | -0.222 0.001 0.001 |
Dim.3 ctr cos2
1 -1.498 0.026 0.066 |
2 -1.538 0.027 0.068 |
3 -1.114 0.014 0.029 |
4 -1.505 0.026 0.066 |
5 -1.557 0.028 0.069 |
6 -1.473 0.025 0.064 |
7 -1.124 0.015 0.032 |
8 -1.224 0.017 0.039 |
9 -1.596 0.030 0.071 |
10 -1.459 0.025 0.063 |
Continuous variables
Dim.1 ctr cos2 Dim.2 ctr cos2 Dim.3 ctr
Initiation_Date | 0.531 8.252 0.282 | -0.287 2.912 0.082 | 0.117 0.517
Number_Fledged | -0.031 0.029 0.001 | 0.336 3.996 0.113 | 0.115 0.496
Nest_End_Date | 0.532 8.273 0.283 | -0.187 1.233 0.035 | 0.143 0.776
cos2
Initiation_Date 0.014 |
Number_Fledged 0.013 |
Nest_End_Date 0.021 |
Categories (the 10 first)
Dim.1 ctr cos2 v.test Dim.2 ctr cos2
Illinois | 2.246 14.243 0.816 48.602 | -0.380 0.594 0.023
Wisconsin | -1.103 6.998 0.816 -48.602 | 0.187 0.292 0.023
Carroll | 1.468 0.085 0.009 3.084 | -1.222 0.086 0.006
Carroll/Whiteside | 1.543 0.031 0.004 1.867 | -1.536 0.045 0.004
Dane | -0.291 0.098 0.007 -3.552 | 2.883 14.046 0.684
Grant | -1.704 0.772 0.082 -9.410 | -1.430 0.791 0.058
Green | -1.276 0.775 0.080 -9.555 | -0.816 0.462 0.033
Grundy | 2.311 0.745 0.075 9.176 | -0.037 0.000 0.000
Iowa | -1.331 3.470 0.373 -22.364 | 0.213 0.129 0.010
Jo_Daviess | 2.026 3.155 0.213 19.633 | -1.770 3.506 0.163
v.test Dim.3 ctr cos2 v.test
Illinois -9.037 | -0.508 1.214 0.042 -12.487 |
Wisconsin 9.037 | 0.249 0.597 0.042 12.487 |
Carroll -2.819 | 1.454 0.139 0.009 3.471 |
Carroll/Whiteside -2.043 | 1.652 0.060 0.004 2.273 |
Dane 38.695 | -0.083 0.013 0.001 -1.154 |
Grant -8.674 | -0.774 0.266 0.017 -4.861 |
Green -6.714 | 0.274 0.059 0.004 2.328 |
Grundy -0.161 | 0.161 0.006 0.000 0.725 |
Iowa 3.925 | -0.264 0.228 0.015 -5.046 |
Jo_Daviess -18.840 | -0.330 0.140 0.006 -3.634 |We can couple the summary with a plot of the inertia per axes :
fviz_eig(X = famd,
addlabels = TRUE)
Conclusion : We can see that keeping three axes is necessary to cover as much inertia as possible while being parcimonious. However, we will simplify the analysis by keeping only two axes in the interpretation parts. Now, we can see the contribution of the variables to the factorial axes :
par(mfrow = c(1,3))
fviz_contrib(X = famd,
choice = "var",
axes = 1
)
### County / State / Year / Species
fviz_contrib(X = famd,
choice = "var",
axes = 2
)
### Year / Habitat / County / Species
fviz_contrib(X = famd,
choice = "var",
axes = 3
)
famd$var$contrib[,1:3] > 1/9*100 Dim.1 Dim.2 Dim.3
Initiation_Date FALSE FALSE FALSE
Number_Fledged FALSE FALSE FALSE
Nest_End_Date FALSE FALSE FALSE
State TRUE FALSE FALSE
County TRUE TRUE TRUE
Habitat FALSE TRUE TRUE
Species TRUE TRUE TRUE
Year TRUE TRUE TRUE
Nest_Fate FALSE FALSE FALSE### County / Habitat / Year / Species
We can see that the only variables that contributed to the axes are the qualitative variables such as County, State, Year, Habitat and Species. The quantitative variables have low contributions.
And now, let’s observe the projections of the variables and of the observations :
### Axes 1 and 2
fviz_famd_var(X = famd,
repel = TRUE,
axes = c(1,2),
col.var = "red",
alpha.var = 2,
"quali.var"
)
fviz_famd_var(X = famd,
repel = TRUE,
axes = c(1,2),
col.var = "red",
"quanti.var"
)
fviz_famd_ind(X = famd,
repel = FALSE,
axes = c(1,2),
col.ind = "orange",
col.quali.var = "red"
)
We can use the function fviz_cluster to visualise the optimal number of clusters to make. The k-means method is used.
famd_g <- as.data.frame(famd$ind$coord[,1:2])
class <- HCPC(famd_g,
nb.clust = 3
)
fviz_nbclust(x = famd_g,
method = "silhouette",
FUNcluster = kmeans,
linecolor = "green3"
)Three clusters is the best choice according to the k-means method.
We can define classes for a Hierarchical Clustering thanks to the function fviz_cluster.
fviz_cluster(class, axes = c(1,2), ellipse.type = "convex")
The fviz_cluster function shows three clusters. The projection of the variables shows an homogeneous scatterplots. The projection of the observations suggests two groups of individuals, separated merely by the axe of the ordinates. To determine the kinds of the groups, we have to gather variables.
The blue cluster is characterised by :
The red cluster is characterised by :
The green side is characterised by :
It is necessary to note that several species are near the border between the Illinois and the Wisconsin. Thus they can be seen in both states, which can be counter-intuitive by seeing the FAMD. However, the only factor that can explain this distribution could be years of sampling. There is a clear separation of the years depending on the part of the graphics.
(byers2017?; ellison2013?; herkert2003?; renfrew2005?; ribic?; ribic2012?; vos2013?)
